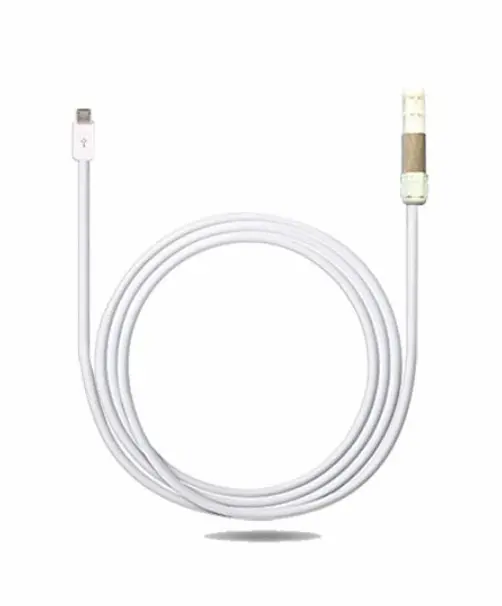

UbiBot TH30S-B External Temperature and Humidity Probe

Descripción

Introduction:
Integrated with temperature and humidity sensors, this probe can monitor two metrics at one time, reducing cost and improving efficiency.

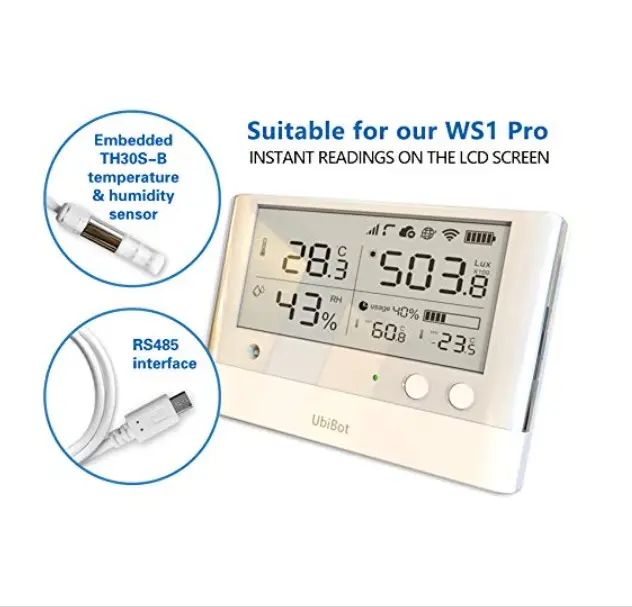

The embedded RS485 interface ensures it to pair with our IoT device WS1 Pro (optional extra) to provide measurements in extreme conditions. We provide customers with customised Micro USB port so you get a ready-to-use product as you receive it. All the monitored sensor readings can be synced to our platform for your view via the App or the console.

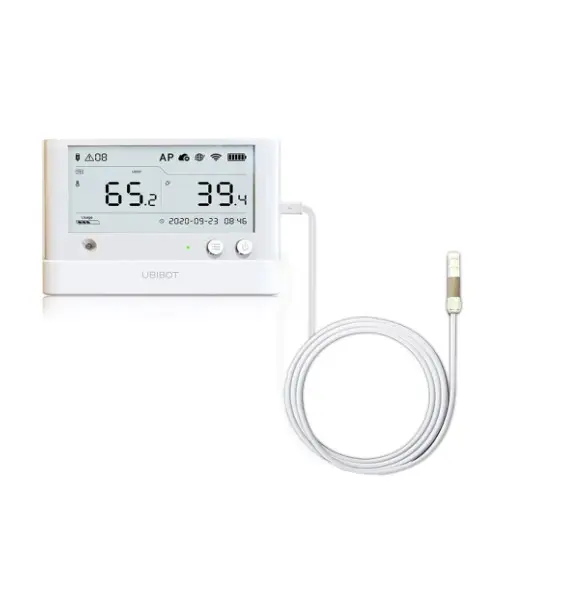

How to connect to the device:
1. Connect the probe to the DOWN USB port.
2. Go to the Settings page in the app or the console to enable the RS485 button.
3. Press the power button once to trigger data sync.You will see the temperature data as EXT2 at the bottom right corner of the screen.
Specifications:
Size of Probe: 7.5*1.5cm (diameter)
Cable Length: 500cm (We are updating the cable length to 500cm recently. The specific condition depending on the model purchased)
Material: ABS
Pobe Material: PE
Connector: Micro USB
Power Supply Range: DC 5V to 12V
Operating Condition: -40°C to +80°C (-40°F to +176°F) 0 to 100% RH
Storage Temperature Range: -40°C to +80°C (-40°F to +176°F)
Accuracy: ± 0.3°C; ± 2%
Output Interface: RS485
Communications Protocol: Modbus

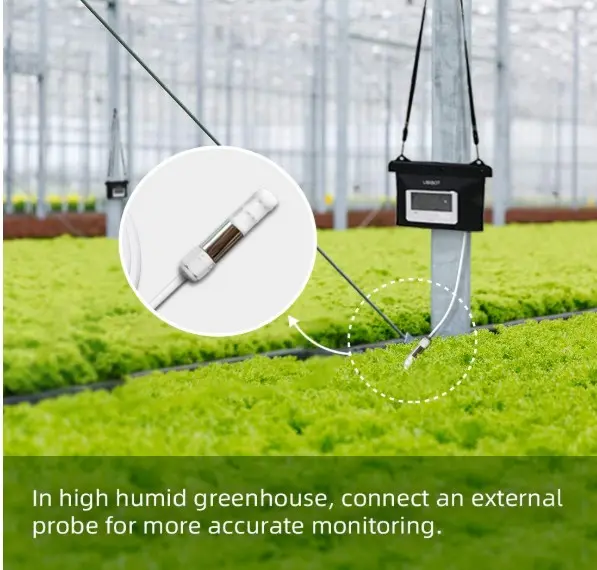

IP rating: IP 42 (Moderately waterproof and dustproof features enable you to deploy it in dusty greenhouse or somewhere highly humid.)
