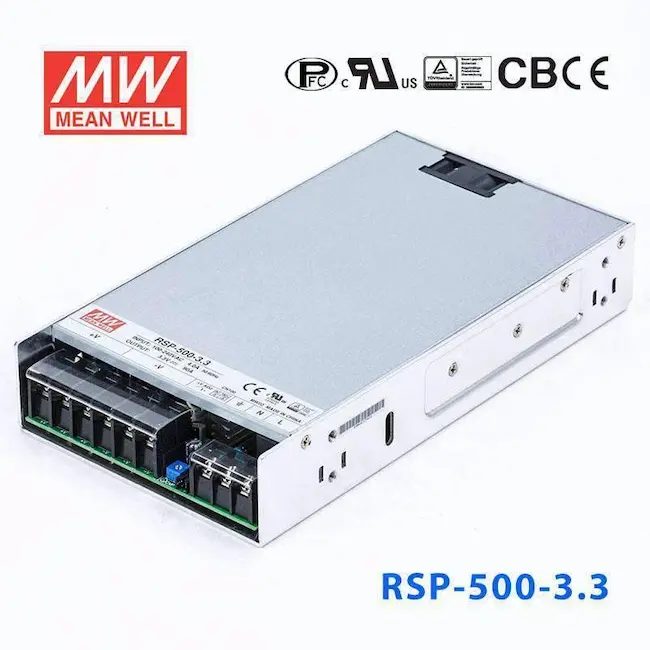

Mean Well RSP-500-3.3 Power Supply 297W 3.3V 90A

Descripción

Condition: New
Brand: Mean Well
MPN
RSP-500-3.3
Features
1U Low Profile
Universal AC Input / Full Range
Protections: Short Circuit / Overload / Overvoltage / Over Temperature
Forced Air Cooling by Built-in DC Fan
LED Power Indicator
Built-in Remote Sensor and On/Off Control
General Specification
AC Input Voltage Range 85~264VAC; 120 ~ 370VDC
AC Input Current (max.) Cold Start, 40A at 230VAC
DC Adjustment Range ± 10% of Rated Output Voltage
Overload Protection Range 105% ~ 130%
Overload Protection Type Constant current limiting, automatic recovery
Overvoltage Protection Range 115% ~ 145%
Overvoltage Protection Type Power off O/P voltage, power back on to recover
Withstand Voltage I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC
Operating Temperature -30 ~ +70°C (see output buck curve)
Safety Standards UL60950-1, TUV EN60950-1 (TUV/UL pending) RSP-500)
EMC Standards EN55022 Class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61000-6-2

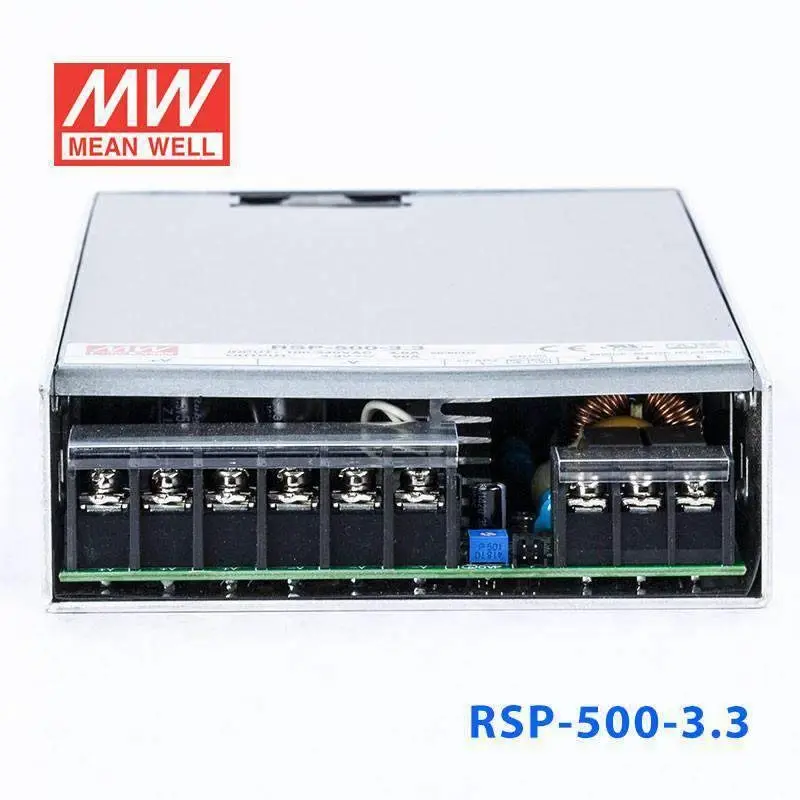

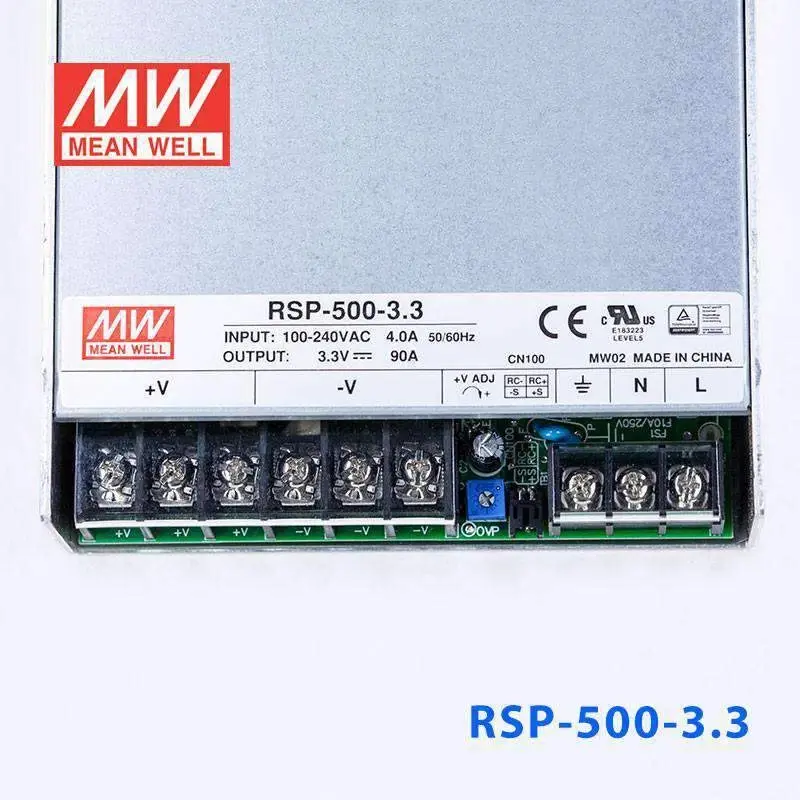

Connection Input: 3P / 9.5 mm pass-through terminal block
Connection Output: 6P / 11 mm pass-through terminal block
Dimensions (LxWxH): 230x127x40.5
