DINSPACE SNAP-12SC-MM Patch Panel

Descripción

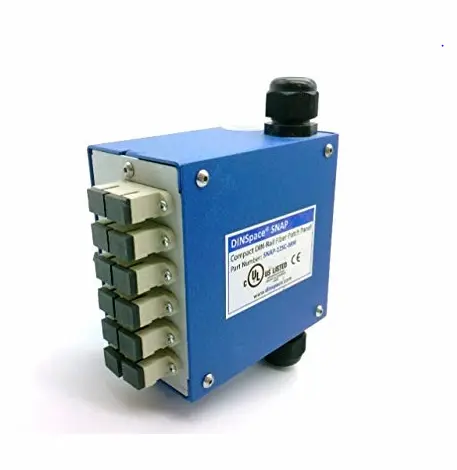

DINSPACE SNAP-12SC-MM Patch Panel, Power Block, Compact, Fiber Optic
DINSpace SNAP Compact Fiber Optic Patch Panel with 6ea. OM1/OM2 Multimode SC/SC Duplex Adapters, UL/CE. Back or side compact fiber optic patch panel. DIN rail mount or surface mount with 2ea. cable glands. Max. cable diameter 0.472 in (0.551 in max. also available special order). Compact size allows for minimal space requirements inside control cabinets. Device includes a splice tray to allow standard fusion splicing of field wiring (pigtails sold separately). Device features a sliding faceplate with capture mechanism to allow the patch panel to be held open «hands-free». Relative humidity (non-condensing): 10% to 95%. Insertion loss: 0.3dB (Multimode) and 0.2dB (Single mode). Storage/transport temperature: -40 to +80 degrees.
